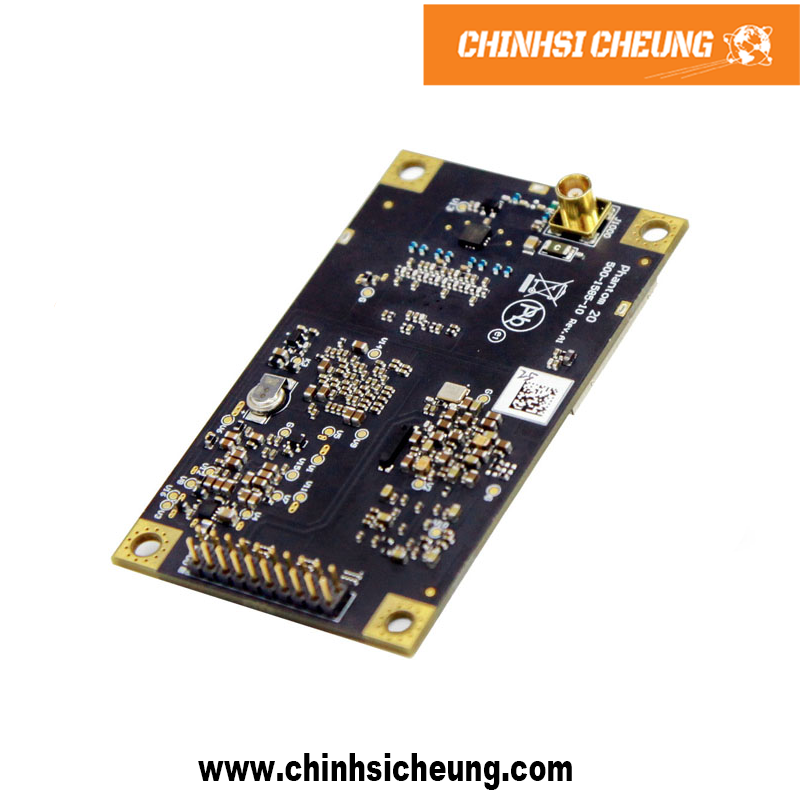

P20 Small-size & High-precision Positioning Board
P20 tracks more signals for unparalleled positioning performance with new Phantom 20 OEM board. The latest technology platform enables simultaneous tracking of all satellite signals including GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS and L-band making it the most robust and reliable solution for machine control. The power management system efficiently governs the processor, memory, and ASIC,making it ideal for multiple integration applications.
- Multi-Frequency GPS, GLONASS, BeiDou, Galileo, and QZSS
- Long-range RTK baselines up to 50 km with fast acquisition time
- Compatible with many RTK sources including ROX format, RTCM, CMR, CMR+
- Mechanically and electrically (pin-for-pin) compatible with many other manufacturers' modules
- Atlas L-band capable to 4 cm RMS
- Athena™ GNSS engine providing best-in-class RTK performance
- Serial, USB for easy use and integration
GNSS Performance |
Receive satellite signals | GPS: L1C/A, L1C, L1P, L2C, L2P, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC GLONASS: G1, G2, G3 Galileo: E1, E5a, E5b, ALTBOC, E6 QZSS: L1C/A, L1C, L2C, L5, LEX SBAS L-Band |
Number of channels | 800 |
Tracking sensitivity | -142 dBm |
SBAS tracking | 3-channel parallel tracking |
Data update rate | 5Hz standard, 10Hz/20Hz/50Hz can be authorized. |
Timing accuracy (1PPS) | 10 ns |
Cold start | 60 s (typical) |
Thermal start-up | 10 s (typical) |
Re-capture time | <1s |
Speed limit | 515 m/s |
Elevation limit | 18288 m |
Positioning Accuracy |
| Level (RMS) |
Single point 1 | 1.2 m |
DGNSS | 0.3 m |
SBAS2 | 0.3 m |
RTK3 | 8mm + 1ppm |
Static | 2.5mm+0.5ppm |
Atlas H10 | 0.04 m |
Atlas H30 | 0.15 m |
Atlas Basic | 0.25 m |
L-Band Performance |
Number of channels | single channel |
Frequency range | 1525 ~ 1560 MHz |
Tracking sensitivity | -140 dBm |
Channel interval | 5.0 kHz |
Satellite signal tracking | Manual or automatic |
Capture time | 15 s (typical) |
Communication |
Serial port | 4 full-duplex serial ports (3.3V CMOS, 3 main serial ports and 1 differential dedicated serial port) |
USB | 1 USB Device |
Porter's rate | 4800 ~ 460800 bps |
Differencial data | ROX, RTCM2.x, RTCM3.x, CMR, CMR+ |
Data format | NMEA0183, Crescent binary |
Timing output | 1PPS, COMS, active high, rising edge synchronization, 10kΩ, 10pF load. |
Event identification input | COMS, active low, falling edge synchronization, 10kΩ, 10pF load |
Electrical |
Operating voltage | 3.3 VDC ± 5% |
Power consumption | 1.8 W |
Operational current | 550 mA |
Antenna power supply | < 15 VDC |
Antenna short circuit protection | have |
Antenna gain range | 10 ~ 40 dB |
Antenna feed impedance | 50Ω |
Environmental |
Working temperature | -40℃ ~ +85℃ |
Storage temperature | -40℃ ~ +85℃ |
Humidity | 95% non-condensing |
Impact | EP455 Section5.14.1 Operational |
Vibration | EP455 Section5.15.1 Random |
Mechanical index |
Chi Cun | 71.1L x 40.6W x 9.8H mm |
Heavy weight | 22g |
status indicator lamp | Power supply, GNSS signal locking, differential signal locking, DGNSS positioning. |
Power/data connector | 20pin double row male, 2mm spacing. |
Antenna connector | MCX female head |
Remarks: 1. It depends on multipath effect, number of visible satellites, satellite distribution, SA effect and ionospheric activity; 2. It depends on multipath effect, number of visible satellites, availability of WAAS and satellite distribution; 3. It depends on multipath effect, number of visible satellites, satellite distribution, baseline length and ionospheric activity. |
