Unitrong Phantom P40 RTK positioning Board GNSS board Hemisphere Base and rover module

Unitrong P40 RTK positioning Board GNSS board Hemisphere Base and rover module

List price：￥ 0.00

Price：￥ 0.00

Unitrong P40 RTK positioning Board GNSS board Hemisphere Base and rover module

High-precision Positioning Board

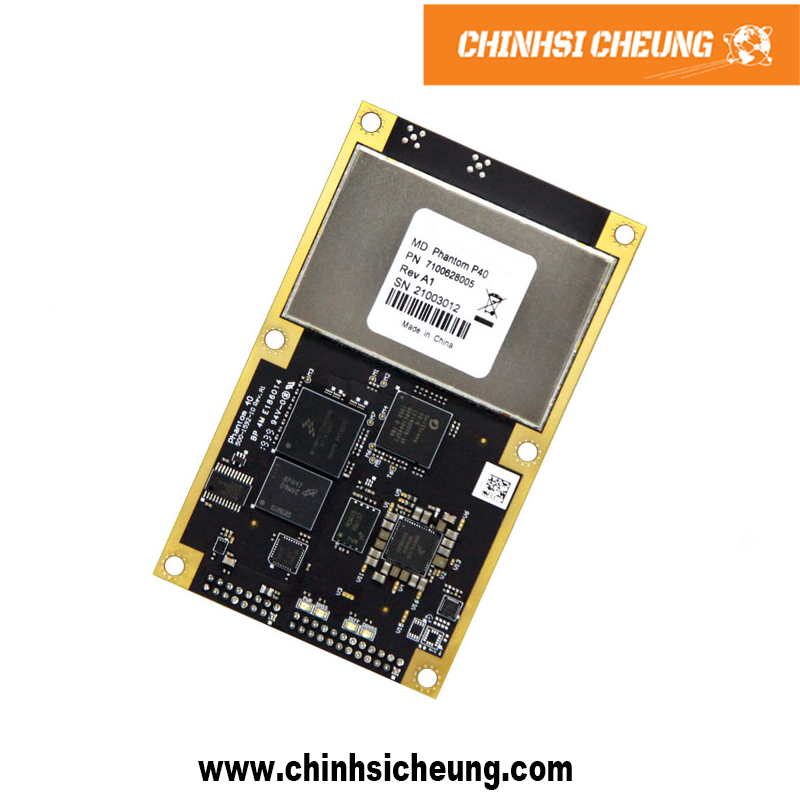

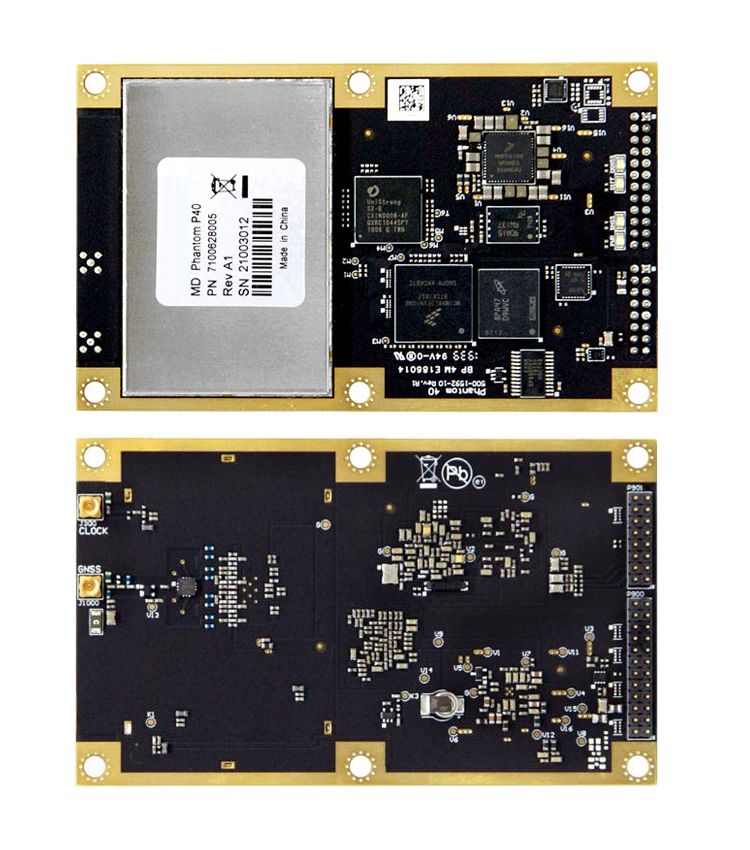

P40 is a new Phantom series positioning board developed by UniStrong based on the "Lyra" second-generation baseband chip. P40 board can receive multi-constellation and multi-frequency GNSS signals, fully supporting BDS-3 satellite signals, and updated signals of Galileo,QZSS and "Atlas" as well. P40 uses the new "Cygnus" anti-jamming technology for better performance in complex environments. The board can be widely used in high-precision application fields such as surveying and mapping, deformation monitoring, aviation and marine.

Features
- "Lyra" second generation + "Aquila" high precision chip;
- Fully supporting BDS-3 satellite signal with multi-constellation and multi-frequency positioning;
- Supporting L-Band and "Atlas" to achieve single unit centimeter level positioning;
- New "Cygus" anti-jamming technology with better performance in complex environments;
- Athena RTK engine and supporting aRTK;
- Multi-interface, serial port, USB, network port and CAN connection.

P40 GNSS Performance
Receive satellite signals	GPS:L1C/A,L1C,L1P,L2C,L2P,L5 BDS:B1I,B2I,B3I,B1C,B2a,B2b,ACEBOC GLONASS:G1,G2,G3 Galileo:E1,E5a,E5b,ALTBOC,E6 QZSS:L1C/A,L1C,L2C,L5,LEX SBAS L-Band
Number of channels	800
SBAS tracking	3 channels, parallel tracking
Data update rate	5Hz standard, 20Hz can be authorized.
Horizontal positioning accuracy	Single	1.2 m (RMS)
	DGNSS	0.3 m (RMS)
	SBAS	0.3 m (RMS)
	RTK	8mm+1ppm
	Static	2.5mm+0.5ppm
	China accuracy
	100px(RMS)	Use H10 service
	375px(RMS)	Use H30 service
	625px(RMS)	Using Atlas Basic service
Timing accuracy (1PPS)	10ns
Cold start	60s (typical)
Thermal start-up	10s (typical)
Re-capture time	<1s
L-Band Performance
Number of channels	single channel
frequency range	1525 to 1560MHz
Communication
Data interface	serial port	3 full-duplex serial ports (2 3.3V CMOS and 1 RS-232)
	USB	1 USB Host/Device
	CAN	two
	Net mouth	1 (10/100Mbps)
Porter's rate	4800～460800bps
Differencial data	RTCM SC-104(SBAS/Beacon), with its own difference format ROX, RTCM2.x,RTCM3.x, CMR, CMR+
Data Format	NMEA0183, NMEA2000, Crescent binary
Timing output	1PPS, CMOS, active high, rising edge synchronization, 10kΩ,10pF load.
Event identification input	CMOS, active low, falling edge synchronization, 10kΩ,10pF load.
Electrical
Operating voltage	3.3VDC ±5%
Power consumption	1.8W
Operational current	550mA
Antenna power supply	5VDC
Environmental
Working temperature	-40°C~+85°C
Storage temperature	-40°C~+85°C
Mechanical
Size	100L x 60 W x 10 H mm
Heavy weight	44g
Power/data connector	24+16pin male, 2mm spacing.
Antenna connector	MMCX, female, straight
External clock connector	MMCX, female, straight
